表格数据分类
这是训练二元分类模型的完整示例。
这些交互式笔记本遵循本示例的步骤
下载 Adult Census Income 数据集¶
Adult Census Income 是 1994 年人口普查数据的摘录,用于预测个人年收入是否超过 5 万美元。该数据集包含超过 4.9 万条记录,具有 14 个属性,并包含缺失数据。
ludwig datasets download adult_census_income
此命令将在当前目录下创建一个名为 adult_census_income.csv
的数据集文件。
数据集中的列为
列 | 描述 |
---|---|
age | 数值变量,年龄 |
workclass | 类别变量,工作类型 |
fnlwgt | 数值变量,无定义 |
education | 类别变量,教育程度 |
education-num | 数值变量,无定义 |
marital-status | 类别变量,婚姻状况 |
occupation | 类别变量,职业 |
relationship | 类别变量,与家庭关系 |
race | 类别变量,种族 |
sex | 类别变量,性别 |
capital-gain | 数值变量,无定义 |
capital-loss | 数值变量,无定义 |
hours-per-week | 数值变量,每周工作小时数 |
native-country | 类别变量,原籍国 |
income | 二元变量," <=50K" 或 " >50K" |
split | 数值变量,指示数据分割:训练集(0),测试集(2) |
训练¶
Ludwig 配置文件描述了机器学习任务。有大量的选项可以控制学习过程。本示例只涵盖了其中的一小部分选项。只描述了本示例中使用的选项。有关所有详细信息,请参阅配置部分。
首先,defaults 部分定义了全局预处理选项。所有数值特征都进行 z-score 标准化,即中心化到均值为 0 并按标准差缩放。数值缺失值用非缺失值的均值填充。
input_features
部分描述了每个预测变量,即输入变量的列名和类型:数值或类别
'combiner' 部分定义了如何组合输入特征以传递给输出解码器。本示例使用concat
组合器,它简单地将输入特征编码器的输出连接起来。组合后的数据通过一个三层的全连接网络,每层有 128 个单元,并使用 dropout 正则化。
接下来定义 output_features
。在本示例中,有一个响应变量 income
。这是一个二元特征,有两个可能的值:" <=50K" 或 " >50K"。由于这些值不是传统的二元值(例如 "True" 和 "False"),因此指定了一个特征特定的预处理选项,以指示哪个字符串(" >50K")被解释为 "True"。为此输出特征指定了一个四层的全连接解码器,每层有 32 个单元。
此配置文件的最后一部分描述了 trainer
的操作选项。在本示例中,trainer
将处理训练数据 10 个周期。优化器类型是 "adam"。
defaults:
number:
preprocessing:
normalization: zscore
missing_value_strategy: fill_with_mean
input_features:
- name: age
type: number
- name: workclass
type: category
- name: fnlwgt
type: number
- name: education
type: category
- name: education-num
type: number
- name: marital-status
type: category
- name: occupation
type: category
- name: relationship
type: category
- name: race
type: category
- name: sex
type: category
- name: capital-gain
type: number
- name: capital-loss
type: number
- name: hours-per-week
type: number
- name: native-country
type: category
combiner:
type: concat
num_fc_layers: 3
output_size: 128
dropout: 0.2
output_features:
- name: income
type: binary
preprocessing:
fallback_true_label: " >50K"
decoder:
num_fc_layers: 4
output_size: 32
trainer:
epochs: 10
optimizer:
type: adam
# create Ludwig configuration dictionary
# define model configuration
config = {'combiner': {'dropout': 0.2,
'num_fc_layers': 3,
'output_size': 128,
'type': 'concat'},
'input_features': [{'name': 'age', 'type': 'number'},
{'name': 'workclass', 'type': 'category'},
{'name': 'fnlwgt', 'type': 'number'},
{'name': 'education', 'type': 'category'},
{'name': 'education-num', 'type': 'number'},
{'name': 'marital-status', 'type': 'category'},
{'name': 'occupation', 'type': 'category'},
{'name': 'relationship', 'type': 'category'},
{'name': 'race', 'type': 'category'},
{'name': 'sex', 'type': 'category'},
{'name': 'capital-gain', 'type': 'number'},
{'name': 'capital-loss', 'type': 'number'},
{'name': 'hours-per-week', 'type': 'number'},
{'name': 'native-country', 'type': 'category'}],
'output_features': [{'name': 'income',
'decoder': {
'num_fc_layers': 4,
'output_size': 32
},
'preprocessing': {'fallback_true_label': ' >50K'},
'loss': {'type': 'binary_weighted_cross_entropy'},
'type': 'binary'}],
'defaults': {
'number': {
'preprocessing': {
'missing_value_strategy': 'fill_with_mean',
'normalization': 'zscore'
}
}
}
'trainer': {'epochs': 10, 'optimizer': {'type': 'adam'}}}
# instantiate Ludwig model object
model = LudwigModel(config=config, logging_level=logging.INFO)
训练模型。
ludwig train \
--dataset adult_census_income.csv \
--config config.yaml
# Trains the model. This cell might take a few minutes.
train_stats, preprocessed_data, output_directory = model.train(training_set=train_df,
test_set=test_df)
评估¶
ludwig evaluate --model_path results/experiment_run/model \
--dataset evaluation_dataset.csv \
--output_directory test_results
# Generates predictions and performance statistics for the test set.
test_stats, predictions, output_directory = model.evaluate(
eval_df,
collect_predictions=True,
collect_overall_stats=True,
skip_save_eval_stats=False,
skip_save_predictions=False,
output_directory="test_results",
return_type="dict"
)
可视化指标¶

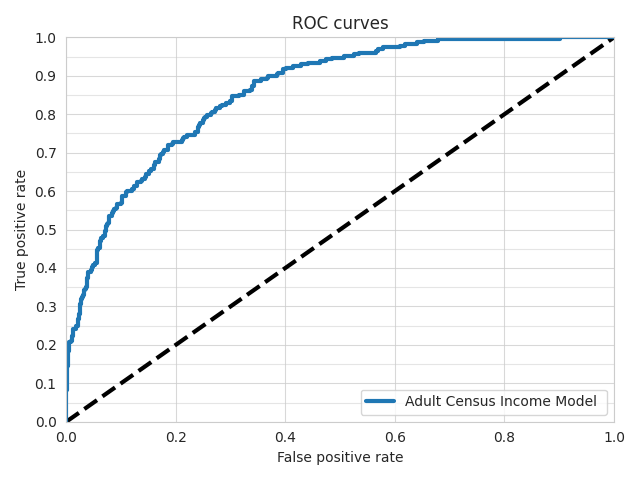

ROC 曲线¶
ludwig visualize roc_curves
命令
!ludwig visualize --visualization roc_curves \
--ground_truth evaluation_dataset.csv \
--ground_truth_metadata results/experiment_run/model/training_set_metadata.json \
--probabilities test_results/predictions.parquet \
--output_feature_name income \
--output_directory visualizations \
--model_names "Adult Census Income Model" \
--file_format png
from ludwig.visualize import roc_curves
roc_curves(
[predictions['income']['probabilities']],
eval_df['income'],
preprocessed_data[-1],
'income',
'1',
model_names=["Adult Census Income"],
output_directory='visualization',
file_format='png'
)
二元阈值指标¶
ludwig visualize binary_threshole_vs_metric
命令
ludwig visualize --visualization binary_threshold_vs_metric \
--ground_truth evaluation_dataset.csv \
--ground_truth_metadata results/experiment_run/model/training_set_metadata.json \
--probabilities test_results/predictions.parquet \
--output_feature_name income \
--positive_label 1 \
--output_directory visualizations \
--model_names "Adult Census Income Model" \
--metrics accuracy precision recall f1\
--file_format png
visualize.binary_threshold_vs_metric()
函数
from ludwig.visualize import binary_threshold_vs_metric
binary_threshold_vs_metric(
[predictions["income"]["probabilities"]],
eval_df["income"],
preprocessed_data[-1],
"income",
["accuracy", "precision", "recall", "f1"],
1,
model_names=["Adult Census Income"],
output_directory="visualization",
file_format="png",
)

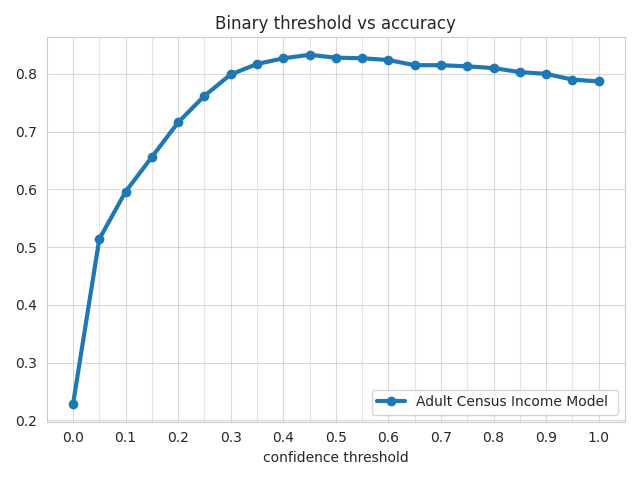

准确率指标¶

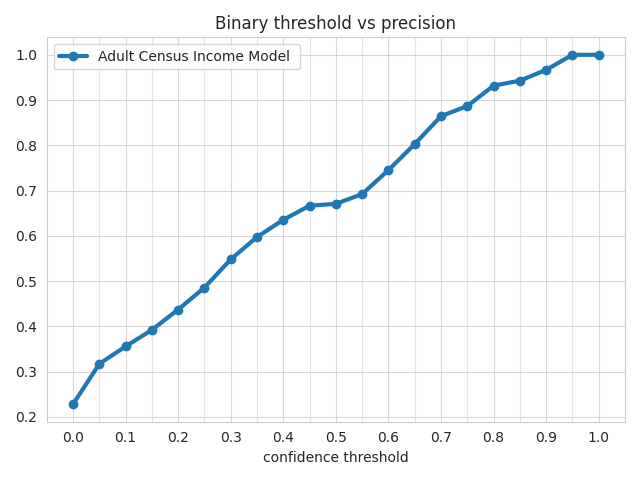

精确率指标¶

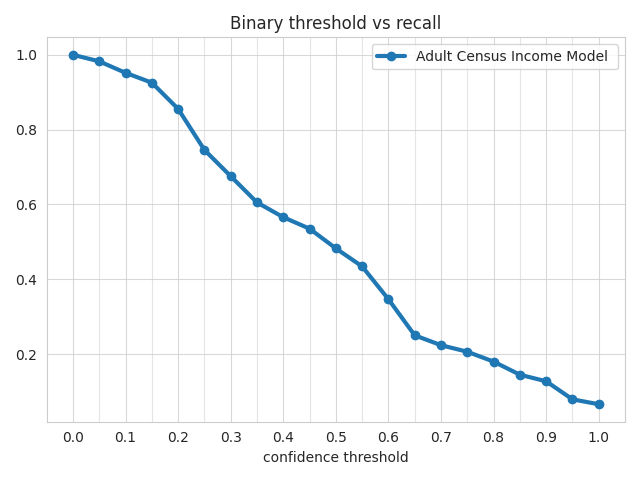

召回率指标¶
F1 指标¶
预测¶
ludwig predict --model_path results/experiment_run/model \
--dataset evaluation_dataset.csv \
--output_directory predictions
predictions, prediction_results = model.predict(dataset=eval_df, skip_save_predictions=False, output_directory="predictions_results")

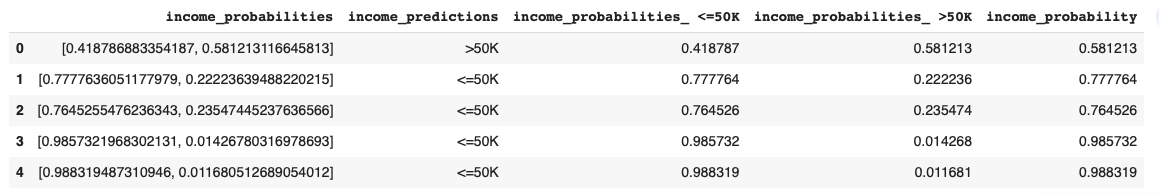

样本预测
